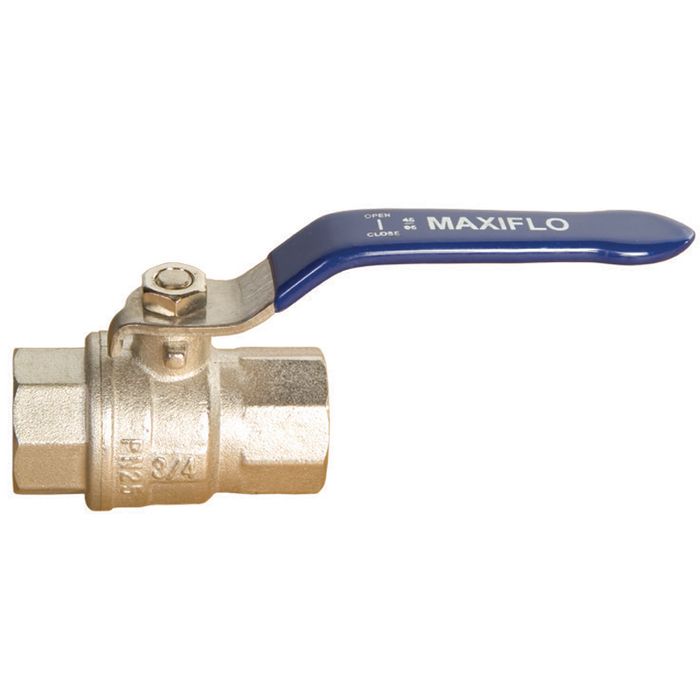

Ball Valves F x F

Description

• Ball valves contain a spherical ball with an orifice straight through, mounted between Teflon seals in either a screwed or flanged body in various materials. When the orifice is in line with both ends of the valve, flow will occur. When the valve is closed the orifice is perpendicular to the ends of the valve. The lever/handle will be in line with the orifice position, indicating the valve position


• Ideal for hot and cold water (non-potable), various oils, chemicals and compressed air


• Maximum working temperature 150°C


• Cold working pressure 2500 kPa


• Thread fully compliant with AS1722.2


• Nickel plated brass body, seat retainer and lever retaining nut


• Solid brass stem and gland and a chromium plated brass ball


• Teflon (PTFE) seat and double O-ring Viton packing

Part Number Details
56223

Details

  • Size:
    15 mm
  • Length:
    60 mm
79444

Details

  • Size:
    20 mm
  • Length:
    70 mm
79445

Details

  • Size:
    25 mm
  • Length:
    79 mm
79439

Details

  • Size:
    32 mm
  • Length:
    97 mm
79441

Details

  • Size:
    40 mm
  • Length:
    105 mm
79442

Details

  • Size:
    50 mm
  • Length:
    125 mm
59812

Details

  • Size:
    65 mm
  • Length:
    151 mm
56224

Details

  • Size:
    80 mm
  • Length:
    174 mm
71062

Details

  • Size:
    100 mm
  • Length:
    168 mm
