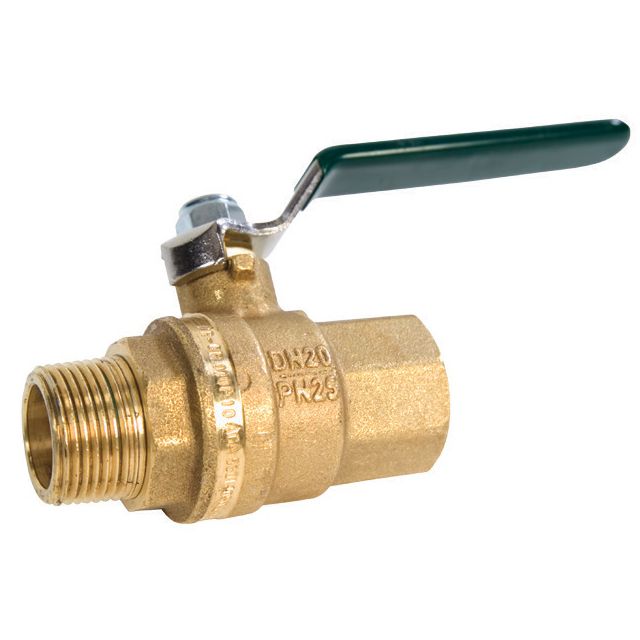

Ball Valves DZR M x F

Description

• Plastic coated, stainless steel lever handle


• As dezincification poses a serious threat to water supply it is mandatory that DZR valves are used in all potable/drinking water applications


• Available in many configurations and handle variations


• Approved for use on low pressure gas services


• Suitable for oils, chemical and hydrocarbon applications


• DZR brass body, seat retainer, stem, gland and T-Handle (optional)


• Solid brass lever retaining nut and a chromium plated DZR brass ball


• Teflon (PTFE) seat and double O-ring Viton packing


• Thread fully compliant with AS1722.1


• Maximum working temperature 150°C (Gas applications maximum 60°C)


• Cold working pressure 2500 kPa (Gas applications maximum 1050 kPa)


• Most valves also available with lilac handles for use with recycled water services, please enquire

Part Number Details
51012

Details

  • Size:
    20 mm
  • Length:
    77 mm
81120

Details

  • Size:
    25 mm
  • Length:
    87 mm
88083

Details

  • Size:
    32 mm
  • Length:
    93 mm
88084

Details

  • Size:
    40 mm
  • Length:
    101 mm
86375

Details

  • Size:
    50 mm
  • Length:
    122 mm
