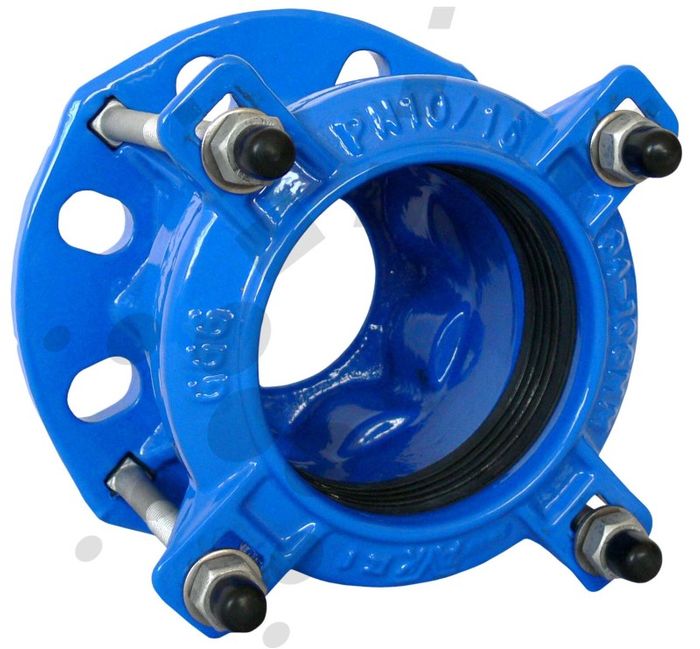

Flanged Multi Gibaults

Description

• Used to seal and repair cast iron, ductile iron, PVC and AC pipes


• Suitable for use in both water and sewerage applications


• Sealing integrity is maintained even at up to 8° deflection


• Ductile iron, epoxy coated construction with stainless steel 316 nuts and bolts


• EPDM seals compliant with AS1646 and AS/NZS4020

Part Number Details
60752

Details

  • Flange:
    100 mm
  • Gibault Range:
    109-133 mm
  • Nominal Size:
    100 mm
60782

Details

  • Flange:
    150 mm
  • Gibault Range:
    157-183 mm
  • Nominal Size:
    150 mm
80497

Details

  • Flange:
    250 mm
  • Gibault Range:
    266-292 mm
  • Nominal Size:
    250 mm
58471

Details

  • Flange:
    375 mm
  • Gibault Range:
    410-436 mm
  • Nominal Size:
    375 mm
58714

Details

  • Flange:
    125/150 mm
  • Gibault Range:
    132-157 mm
  • Nominal Size:
    125 mm
80495

Details

  • Flange:
    80 mm
  • Gibault Range:
    84-106 mm
  • Nominal Size:
    80 mm
80496

Details

  • Flange:
    200 mm
  • Gibault Range:
    218-242 mm
  • Nominal Size:
    200 mm
80498

Details

  • Flange:
    225/250 mm
  • Gibault Range:
    242-268 mm
  • Nominal Size:
    225 mm
87000

Details

  • Flange:
    40/65 mm
  • Gibault Range:
    46-63 mm
  • Nominal Size:
    40 mm
87001

Details

  • Flange:
    50/80 mm
  • Gibault Range:
    57-74 mm
  • Nominal Size:
    50/80 mm
87002

Details

  • Flange:
    80/100 mm
  • Gibault Range:
    84-106 mm
  • Nominal Size:
    80 mm
87004

Details

  • Flange:
    150 mm
  • Gibault Range:
    176-201 mm
  • Nominal Size:
    150 mm
87009

Details

  • Flange:
    400 mm
  • Gibault Range:
    436-462 mm
  • Nominal Size:
    400 mm
58829

Details

  • Flange:
    300 mm
  • Gibault Range:
    315-349 mm
  • Nominal Size:
    300 mm
