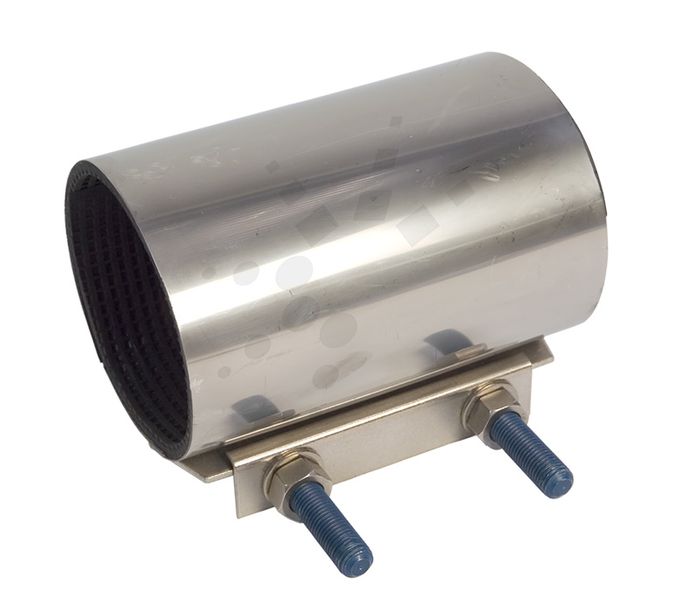

Standard Repair Clamps

Description

• Ideal for most partial pipe breaks or punctures


• Full stainless steel 316 band and bolts for maximum service life


• Full circle nitrile rubber gasket for maximum sealing


• Multi-range clamps allow clamps to cover a range of pipes as well as catering for pipe ovality or irregularities


• Can be applied directly to pressurised pipelines if required


• Manufactured to AS4181, 1600 kPa pressure rated


• Available in almost any length, made to order


• Common sizes listed, many more available on request


• Not recommended for actual pipe breaks where end of pipe exceeds 5 mm opening

Part Number Details
20551

Details

  • Length:
    300 mm
  • Range:
    248-257 mm
87120

Details

  • Length:
    600 mm
  • Range:
    179-189 mm
87113

Details

  • Length:
    300 mm
  • Range:
    130-140 mm
87114

Details

  • Length:
    400 mm
  • Range:
    130-140 mm
87115

Details

  • Length:
    400 mm
  • Range:
    151-161 mm
87116

Details

  • Length:
    400 mm
  • Range:
    174-183 mm
87117

Details

  • Length:
    600 mm
  • Range:
    174-183 mm
87118

Details

  • Length:
    300 mm
  • Range:
    179-189 mm
87119

Details

  • Length:
    400 mm
  • Range:
    179-189 mm
87121

Details

  • Length:
    400 mm
  • Range:
    189-199 mm
87109

Details

  • Length:
    200 mm
  • Range:
    110-120 mm
87122

Details

  • Length:
    600 mm
  • Range:
    189-199 mm
87123

Details

  • Length:
    200 mm
  • Range:
    196-205 mm
87124

Details

  • Length:
    300 mm
  • Range:
    196-205 mm
87125

Details

  • Length:
    400 mm
  • Range:
    202-212 mm
87126

Details

  • Length:
    600 mm
  • Range:
    202-212 mm
87127

Details

  • Length:
    600 mm
  • Range:
    229-238 mm
87128

Details

  • Length:
    400 mm
  • Range:
    236-245 mm
87129

Details

  • Length:
    600 mm
  • Range:
    236-245 mm
87112

Details

  • Length:
    300 mm
  • Range:
    114-124 mm
87108

Details

  • Length:
    400 mm
  • Range:
    104-113 mm
87133

Details

  • Length:
    600 mm
  • Range:
    271-281 mm
81297

Details

  • Length:
    400 mm
  • Range:
    690-720 mm
74082

Details

  • Length:
    300 mm
  • Range:
    189-199 mm
81250

Details

  • Length:
    400 mm
  • Range:
    229-238 mm
81291

Details

  • Length:
    400 mm
  • Range:
    450-470 mm
81292

Details

  • Length:
    400 mm
  • Range:
    500-520 mm
81293

Details

  • Length:
    400 mm
  • Range:
    520-540 mm
81294

Details

  • Length:
    400 mm
  • Range:
    550-570 mm
81295

Details

  • Length:
    400 mm
  • Range:
    600-620 mm
81296

Details

  • Length:
    400 mm
  • Range:
    650-680 mm
81298

Details

  • Length:
    400 mm
  • Range:
    720-750 mm
86857

Details

  • Length:
    600 mm
  • Range:
    196-205 mm
81327

Details

  • Length:
    400 mm
  • Range:
    400-420 mm
85362

Details

  • Length:
    200 mm
  • Range:
    179-189 mm
85490

Details

  • Length:
    300 mm
  • Range:
    104-113 mm
85532

Details

  • Length:
    300 mm
  • Range:
    160-170 mm
86021

Details

  • Length:
    600 mm
  • Range:
    330-360 mm
86022

Details

  • Length:
    600 mm
  • Range:
    390-410 mm
86023

Details

  • Length:
    600 mm
  • Range:
    420-440 mm
86694

Details

  • Length:
    400 mm
  • Range:
    196-205 mm
87132

Details

  • Length:
    600 mm
  • Range:
    255-265 mm
87134

Details

  • Length:
    600 mm
  • Range:
    281-290 mm
73992

Details

  • Length:
    300 mm
  • Range:
    167-176 mm
87173

Details

  • Length:
    600 mm
  • Range:
    720-750 mm
87166

Details

  • Length:
    600 mm
  • Range:
    590-610 mm
87167

Details

  • Length:
    600 mm
  • Range:
    600-620 mm
87168

Details

  • Length:
    600 mm
  • Range:
    620-640 mm
87169

Details

  • Length:
    600 mm
  • Range:
    650-670 mm
87170

Details

  • Length:
    600 mm
  • Range:
    650-680 mm
87171

Details

  • Length:
    600 mm
  • Range:
    690-720 mm
87172

Details

  • Length:
    600 mm
  • Range:
    710-740 mm
16912

Details

  • Length:
    300 mm
  • Range:
    175-185 mm
87164

Details

  • Length:
    600 mm
  • Range:
    540-560 mm
16952

Details

  • Length:
    200 mm
  • Range:
    120-130 mm
38092

Details

  • Length:
    200 mm
  • Range:
    113-120 mm
38152

Details

  • Length:
    200 mm
  • Range:
    121-130 mm
38183

Details

  • Length:
    400 mm
  • Range:
    121-130 mm
38332

Details

  • Length:
    200 mm
  • Range:
    174-183 mm
38482

Details

  • Length:
    300 mm
  • Range:
    229-238 mm
38182

Details

  • Length:
    300 mm
  • Range:
    121-130 mm
38484

Details

  • Length:
    300 mm
  • Range:
    236-245 mm
87165

Details

  • Length:
    600 mm
  • Range:
    550-570 mm
87163

Details

  • Length:
    600 mm
  • Range:
    530-550 mm
87135

Details

  • Length:
    400 mm
  • Range:
    285-295 mm
87147

Details

  • Length:
    300 mm
  • Range:
    343-355 mm
87136

Details

  • Length:
    600 mm
  • Range:
    285-295 mm
87137

Details

  • Length:
    400 mm
  • Range:
    298-309 mm
87138

Details

  • Length:
    600 mm
  • Range:
    298-309 mm
87139

Details

  • Length:
    600 mm
  • Range:
    312-322 mm
87140

Details

  • Length:
    600 mm
  • Range:
    322-331 mm
87142

Details

  • Length:
    400 mm
  • Range:
    330-360 mm
87143

Details

  • Length:
    300 mm
  • Range:
    332-342 mm
87144

Details

  • Length:
    600 mm
  • Range:
    332-342 mm
87148

Details

  • Length:
    600 mm
  • Range:
    343-355 mm
87162

Details

  • Length:
    600 mm
  • Range:
    520-540 mm
87149

Details

  • Length:
    300 mm
  • Range:
    356-366 mm
87150

Details

  • Length:
    600 mm
  • Range:
    356-366 mm
87152

Details

  • Length:
    600 mm
  • Range:
    370-390 mm
87157

Details

  • Length:
    600 mm
  • Range:
    440-460 mm
87158

Details

  • Length:
    600 mm
  • Range:
    450-470 mm
87159

Details

  • Length:
    600 mm
  • Range:
    470-490 mm
87160

Details

  • Length:
    600 mm
  • Range:
    490-510 mm
87161

Details

  • Length:
    600 mm
  • Range:
    500-520 mm
74052

Details

  • Length:
    200 mm
  • Range:
    189-199 mm
69772

Details

  • Length:
    300 mm
  • Range:
    59-67 mm
38122

Details

  • Length:
    300 mm
  • Range:
    113-120 mm
25044

Details

  • Length:
    300 mm
  • Range:
    75-83 mm
15961

Details

  • Length:
    300 mm
  • Range:
    300-310 mm
16022

Details

  • Length:
    200 mm
  • Range:
    155-165 mm
16023

Details

  • Length:
    300 mm
  • Range:
    155-165 mm
16024

Details

  • Length:
    400 mm
  • Range:
    155-165 mm
16026

Details

  • Length:
    600 mm
  • Range:
    155-165 mm
16329

Details

  • Length:
    300 mm
  • Range:
    85-95 mm
16949

Details

  • Length:
    200 mm
  • Range:
    114-124 mm
38184

Details

  • Length:
    400 mm
  • Range:
    113-120 mm
12140

Details

  • Length:
    200 mm
  • Range:
    225-235 mm
38186

Details

  • Length:
    600 mm
  • Range:
    113-123 mm
38187

Details

  • Length:
    600 mm
  • Range:
    121-130 mm
38212

Details

  • Length:
    200 mm
  • Range:
    130-140 mm
38242

Details

  • Length:
    200 mm
  • Range:
    151-161 mm
38272

Details

  • Length:
    300 mm
  • Range:
    151-161 mm
38302

Details

  • Length:
    200 mm
  • Range:
    167-176 mm
38392

Details

  • Length:
    200 mm
  • Range:
    202-212 mm
38422

Details

  • Length:
    200 mm
  • Range:
    218-228 mm
12150

Details

  • Length:
    300 mm
  • Range:
    135-145 mm
12043

Details

  • Length:
    600 mm
  • Range:
    265-275 mm
38542

Details

  • Length:
    300 mm
  • Range:
    281-290 mm
37972

Details

  • Length:
    150 mm
  • Range:
    59-67 mm
38362

Details

  • Length:
    300 mm
  • Range:
    174-183 mm
38452

Details

  • Length:
    200 mm
  • Range:
    229-238 mm
38602

Details

  • Length:
    300 mm
  • Range:
    312-322 mm
59516

Details

  • Length:
    200 mm
  • Range:
    160-170 mm
60812

Details

  • Length:
    300 mm
  • Range:
    218-228 mm
64022

Details

  • Length:
    400 mm
  • Range:
    255-265 mm
64052

Details

  • Length:
    300 mm
  • Range:
    271-281 mm
87110

Details

  • Length:
    300 mm
  • Range:
    110-120 mm
20541

Details

  • Length:
    150 mm
  • Range:
    75-83 mm
11951

Details

  • Length:
    400 mm
  • Range:
    215-225 mm
28002

Details

  • Length:
    150 mm
  • Range:
    69-76 mm
37942

Details

  • Length:
    150 mm
  • Range:
    46-54 mm
38032

Details

  • Length:
    200 mm
  • Range:
    85-95 mm
38062

Details

  • Length:
    200 mm
  • Range:
    95-104 mm
10621

Details

  • Length:
    200 mm
  • Range:
    89-99 mm
10624

Details

  • Length:
    200 mm
  • Range:
    177-187 mm
11306

Details

  • Length:
    600 mm
  • Range:
    205-215 mm
11613

Details

  • Length:
    150 mm
  • Range:
    55-65 mm
38512

Details

  • Length:
    300 mm
  • Range:
    255-265 mm
38572

Details

  • Length:
    300 mm
  • Range:
    298-309 mm
66412

Details

  • Length:
    300 mm
  • Range:
    202-212 mm
64322

Details

  • Length:
    400 mm
  • Range:
    420-440 mm
64112

Details

  • Length:
    400 mm
  • Range:
    281-290 mm
64142

Details

  • Length:
    400 mm
  • Range:
    312-322 mm
64172

Details

  • Length:
    300 mm
  • Range:
    322-331 mm
64202

Details

  • Length:
    400 mm
  • Range:
    322-331 mm
64232

Details

  • Length:
    400 mm
  • Range:
    356-366 mm
64262

Details

  • Length:
    400 mm
  • Range:
    370-390 mm
64292

Details

  • Length:
    400 mm
  • Range:
    390-410 mm
64352

Details

  • Length:
    400 mm
  • Range:
    440-460 mm
63992

Details

  • Length:
    400 mm
  • Range:
    248-257 mm
64382

Details

  • Length:
    400 mm
  • Range:
    470-490 mm
64412

Details

  • Length:
    400 mm
  • Range:
    490-510 mm
64442

Details

  • Length:
    400 mm
  • Range:
    540-560 mm
64472

Details

  • Length:
    400 mm
  • Range:
    570-590 mm
64473

Details

  • Length:
    600 mm
  • Range:
    570-590 mm
64502

Details

  • Length:
    400 mm
  • Range:
    590-610 mm
64532

Details

  • Length:
    400 mm
  • Range:
    620-640 mm
64562

Details

  • Length:
    400 mm
  • Range:
    650-670 mm
64082

Details

  • Length:
    400 mm
  • Range:
    271-281 mm
63962

Details

  • Length:
    200 mm
  • Range:
    236-245 mm
38632

Details

  • Length:
    400 mm
  • Range:
    332-342 mm
58750

Details

  • Length:
    600 mm
  • Range:
    248-257 mm
38662

Details

  • Length:
    400 mm
  • Range:
    343-355 mm
54722

Details

  • Length:
    400 mm
  • Range:
    410-430 mm
57464

Details

  • Length:
    200 mm
  • Range:
    104-113 mm
58087

Details

  • Length:
    400 mm
  • Range:
    167-176 mm
58088

Details

  • Length:
    400 mm
  • Range:
    218-228 mm
58089

Details

  • Length:
    600 mm
  • Range:
    167-176 mm
58090

Details

  • Length:
    600 mm
  • Range:
    218-228 mm
58507

Details

  • Length:
    400 mm
  • Range:
    265-275 mm
58957

Details

  • Length:
    600 mm
  • Range:
    560-590 mm
59830

Details

  • Length:
    600 mm
  • Range:
    160-170 mm
59185

Details

  • Length:
    400 mm
  • Range:
    530-550 mm
59267

Details

  • Length:
    300 mm
  • Range:
    95-104 mm
59515

Details

  • Length:
    400 mm
  • Range:
    85-95 mm
59517

Details

  • Length:
    400 mm
  • Range:
    160-170 mm
59597

Details

  • Length:
    400 mm
  • Range:
    340-350 mm
59599

Details

  • Length:
    300 mm
  • Range:
    285-295 mm
59796

Details

  • Length:
    600 mm
  • Range:
    400-420 mm
59815

Details

  • Length:
    400 mm
  • Range:
    710-740 mm
59030

Details

  • Length:
    200 mm
  • Range:
    620-640 mm
