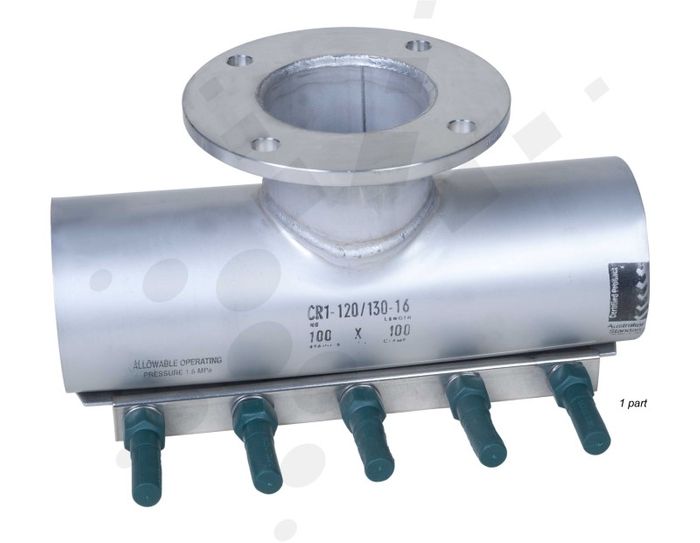

Flanged Offtake Clamps

Description

• Length 400 mm

• Ideal for under pressure tapping and connection of new ‘T’ branches

• Fully certified flange offtakes at 90° to main clamp

• Especially suited for installing hydrants and air valves to existing mains

• Avoids the need to cut out pipe sections, making supply shut offs and reconnections obsolete

• Will cater for pipe irregularities and ovality

• Complete stainless steel 316 construction with nitrile seal

Part Number Details
54134

Details

  • Size:
    65 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    121-130 mm
  • Table:
    D
54460

Details

  • Size:
    65 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    175-185 mm
  • Table:
    D
70342

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    120-130 mm
  • Table:
    D
88359

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    1
  • Range:
    195-205 mm
  • Table:
    D
79865

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    1
  • Range:
    175-185 mm
  • Table:
    D
85803

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    1
  • Range:
    95-105 mm
  • Table:
    D
79864

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    1
  • Range:
    160-170 mm
  • Table:
    D
79863

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    1
  • Range:
    121-130 mm
  • Table:
    D
85962

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    310-320 mm
  • Table:
    D
85963

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
79862

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    1
  • Range:
    113-120 mm
  • Table:
    D
79861

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    230-240 mm
  • Table:
    D
54037

Details

  • Size:
    80 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    650-680 mm
  • Table:
    D
88363

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    285-305 mm
  • Table:
    D
79891

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    279-290 mm
  • Table:
    D
88375

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    400-420 mm
  • Table:
    D
88379

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
88383

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    450-470 mm
  • Table:
    D
88389

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    490-510 mm
  • Table:
    D
79857

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    215-225 mm
  • Table:
    D
70492

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    175-185 mm
  • Table:
    D
79890

Details

  • Size:
    80 mm
  • Length:
    400 mm
  • Outlet:
    80 mm
  • Parts:
    2
  • Range:
    250-261 mm
  • Table:
    D
79858

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    215-225 mm
  • Table:
    D
70372

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    120-130 mm
  • Table:
    D
79870

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    1
  • Range:
    113-120 mm
  • Table:
    D
79892

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    250-261 mm
  • Table:
    D
79872

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    1
  • Range:
    160-170 mm
  • Table:
    D
80323

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    340-360 mm
  • Table:
    D
81612

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    400-420 mm
  • Table:
    D
59149

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
85959

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
86415

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    1
  • Range:
    195-205 mm
  • Table:
    D
86856

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    196-205 mm
  • Table:
    E
88364

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    285-305 mm
  • Table:
    D
88384

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    450-470 mm
  • Table:
    D
88390

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    490-510 mm
  • Table:
    D
88932

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    150-160 mm
  • Table:
    E
70582

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    230-240 mm
  • Table:
    D
79871

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    1
  • Range:
    121-130 mm
  • Table:
    D
79873

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    1
  • Range:
    175-185 mm
  • Table:
    D
85958

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    310-320 mm
  • Table:
    D
79893

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    100 mm
  • Parts:
    2
  • Range:
    279-290 mm
  • Table:
    D
23487

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    230-245 mm
  • Table:
    D
11321

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    560-590 mm
  • Table:
    D
11486

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    279-290 mm
  • Table:
    D
12680

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    410-430 mm
  • Table:
    D
11520

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    174-183 mm
  • Table:
    D
12198

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    230-240 mm
  • Table:
    E
28432

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    590-610 mm
  • Table:
    D
11487

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
28456

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    570-590 mm
  • Table:
    D
53823

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    160-170 mm
  • Table:
    E
53927

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    3
  • Range:
    810-840 mm
  • Table:
    D
54126

Details

  • Size:
    100 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    550-570 mm
  • Table:
    D
56372

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    650-680 mm
  • Table:
    D
11488

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
11485

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    230-240 mm
  • Table:
    D
11489

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    505-525 mm
  • Table:
    D
11490

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    550-570 mm
  • Table:
    D
11483

Details

  • Size:
    100 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    121-130 mm
  • Table:
    D
11500

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    3
  • Range:
    650-680 mm
  • Table:
    D
11499

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    550-570 mm
  • Table:
    D
59051

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    490-510 mm
  • Table:
    D
11498

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    505-525 mm
  • Table:
    D
11497

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
88360

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    1
  • Range:
    195-205 mm
  • Table:
    D
58815

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
11496

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
11494

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    230-240 mm
  • Table:
    D
88385

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    450-470 mm
  • Table:
    D
88368

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    310-320 mm
  • Table:
    D
11501

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    3
  • Range:
    810-840 mm
  • Table:
    D
80390

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    340-360 mm
  • Table:
    D
56399

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    440-460 mm
  • Table:
    D
81613

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    400-420 mm
  • Table:
    D
11493

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    1
  • Range:
    175-183 mm
  • Table:
    D
79899

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    279-290 mm
  • Table:
    D
79895

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    285-305 mm
  • Table:
    D
79894

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    250-261 mm
  • Table:
    D
10806

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    505-525 mm
  • Table:
    D
13226

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    570-590 mm
  • Table:
    D
12159

Details

  • Size:
    150 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    3
  • Range:
    650-680 mm
  • Table:
    D
79878

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    1
  • Range:
    160-170 mm
  • Table:
    D
28455

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    550-570 mm
  • Table:
    D
79859

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    215-225 mm
  • Table:
    D
56813

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
70612

Details

  • Size:
    150 mm
  • Length:
    400 mm
  • Outlet:
    150 mm
  • Parts:
    2
  • Range:
    230-240 mm
  • Table:
    D
88391

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    490-510 mm
  • Table:
    D
58710

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    505-525 mm
  • Table:
    D
88380

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
79860

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    215-225 mm
  • Table:
    D
88376

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    400-420 mm
  • Table:
    D
79896

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    250-261 mm
  • Table:
    D
79897

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    279-290 mm
  • Table:
    D
81614

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    450-470 mm
  • Table:
    D
13001

Details

  • Size:
    200 mm
  • Length:
    600 mm
  • Outlet:
    tbc
  • Parts:
    3
  • Range:
    650-680 mm
  • Table:
    D
70642

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    230-240 mm
  • Table:
    D
11899

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    2
  • Range:
    360-370 mm
  • Table:
    D
86435

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
88365

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    285-305 mm
  • Table:
    D
88369

Details

  • Size:
    200 mm
  • Length:
    400 mm
  • Outlet:
    200 mm
  • Parts:
    2
  • Range:
    310-320 mm
  • Table:
    D
79898

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    250-261 mm
  • Table:
    D
88392

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    490-510 mm
  • Table:
    D
88386

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    450-470 mm
  • Table:
    D
88366

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    285-305 mm
  • Table:
    D
88381

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
88370

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    310-320 mm
  • Table:
    D
88377

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    400-420 mm
  • Table:
    D
88372

Details

  • Size:
    225 mm
  • Length:
    400 mm
  • Outlet:
    225 mm
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
88367

Details

  • Size:
    250 mm
  • Length:
    400 mm
  • Outlet:
    250 mm
  • Parts:
    2
  • Range:
    285-305 mm
  • Table:
    D
88387

Details

  • Size:
    250 mm
  • Length:
    400 mm
  • Outlet:
    250 mm
  • Parts:
    2
  • Range:
    450-470 mm
  • Table:
    D
88373

Details

  • Size:
    250 mm
  • Length:
    400 mm
  • Outlet:
    250 mm
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
88371

Details

  • Size:
    250 mm
  • Length:
    400 mm
  • Outlet:
    250 mm
  • Parts:
    2
  • Range:
    310-320 mm
  • Table:
    D
88393

Details

  • Size:
    250 mm
  • Length:
    400 mm
  • Outlet:
    250 mm
  • Parts:
    2
  • Range:
    490-510 mm
  • Table:
    D
88362

Details

  • Size:
    250 mm
  • Length:
    400 mm
  • Outlet:
    250 mm
  • Parts:
    2
  • Range:
    279-290 mm
  • Table:
    D
18395

Details

  • Size:
    300 mm
  • Length:
    400 mm
  • Outlet:
    tbc
  • Parts:
    3
  • Range:
    660-670 mm
  • Table:
    D
88374

Details

  • Size:
    300 mm
  • Length:
    400 mm
  • Outlet:
    300 mm
  • Parts:
    2
  • Range:
    330-350 mm
  • Table:
    D
88394

Details

  • Size:
    300 mm
  • Length:
    400 mm
  • Outlet:
    300 mm
  • Parts:
    2
  • Range:
    500-510 mm
  • Table:
    D
88382

Details

  • Size:
    300 mm
  • Length:
    400 mm
  • Outlet:
    300 mm
  • Parts:
    2
  • Range:
    420-440 mm
  • Table:
    D
88378

Details

  • Size:
    300 mm
  • Length:
    400 mm
  • Outlet:
    300 mm
  • Parts:
    2
  • Range:
    400-420 mm
  • Table:
    D
88388

Details

  • Size:
    300 mm
  • Length:
    400 mm
  • Outlet:
    300 mm
  • Parts:
    2
  • Range:
    450-470 mm
  • Table:
    D
