Imex 77 Series Laser Levels

Description

• Fully automatic, self levelling, general purpose, red beam laser

• Heavy duty, highly visible, robust, shock, dust and weatherproof casing

• Remote control functionality with 20 m diameter working range

• Manual grade setting to 5° with superb accuracy

• Huge 500 m diameter working range with the standard detector

• 2 year Imex™ warranty





Specifications

• Self Levelling Range: ±5°

• Accuracy: 1.5 mm at 30 m

• Working Distance: Diameter 500 m with included detector

• Rotation Speed: 0, 60, 120, 300, 600 rpm

• Scan Mode: No

• Grade Slope: ±5° (Y axis only) 8.8%

• Plumb Spot: No

• Light Source: Red laser diode, 635 nm, Class II

• Remote Control: Yes, working range approximately 20 m, 2 x AAA batteries

• Horizontal/Vertical: No

• Waterproof/Shatterproof: IP66

• Power: DC 4.8-6 V (Ni-Mh rechargeable)/alkaline option

• Working Time Between Charge: Approximately 20 hours, approximately 60 hours alkaline

• Low Battery Light: Yes

• Battery Charger: 240 V

• Working Temperature: -20°C to +50°C (-40°C to +70°C storage)

• Detector: Double sided operation fine and coarse setting; 9 V battery – 45 m range

• Unit Weight: 2.2 kg





Kit Includes

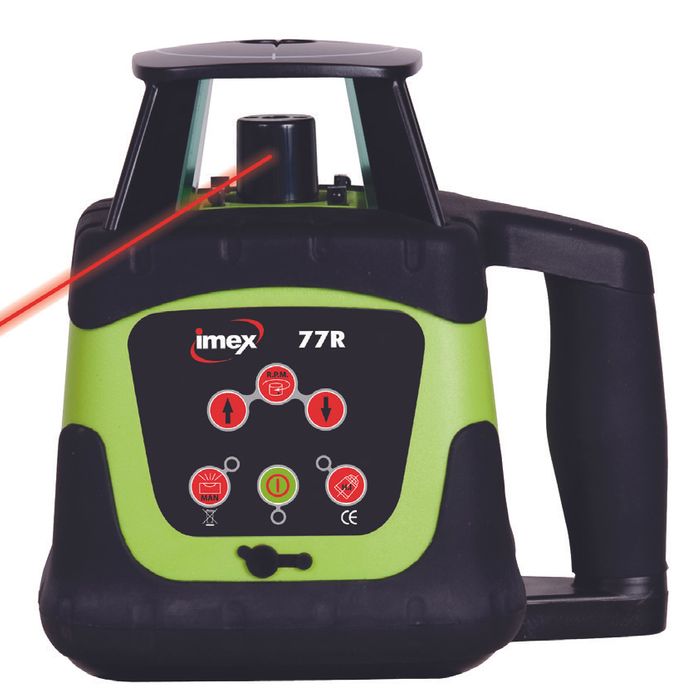

• 77R red beam laser level

• Remote controller

• Double sided detector

• Hard carry case

• Tripod

• Staff
