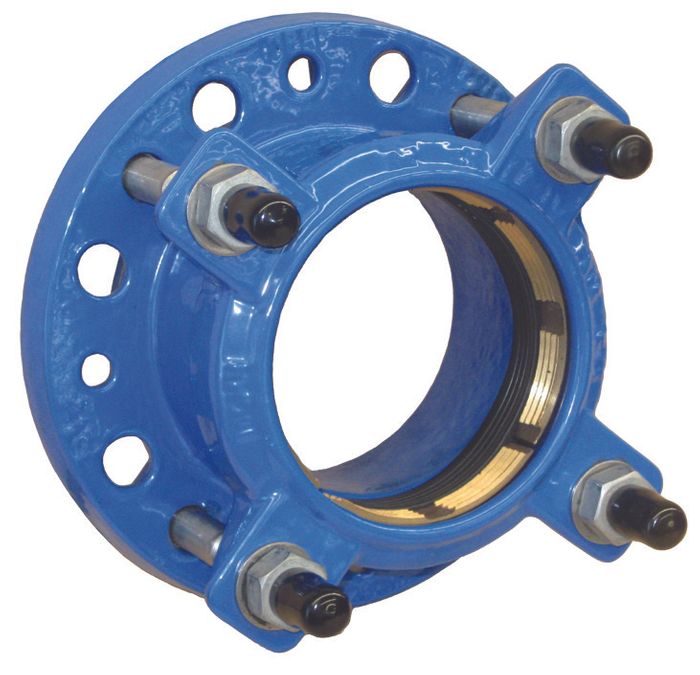

SupaPlus Poly Flange Couplings

Description

• Used when adapting PE pipes to flanged connections


• Simple to use with multi-flange drillings to ensure most applications are covered


• Fully electrostatically epoxy resin coated ductile iron


• Stainless steel 316 nuts and bolts with WSA 109 compliant EPDM rubber sealing ring


• Suited for all water and neutral liquid applications


• Use of poly support bushes is recommended when using these couplings

Part Number Details
12381

Details

  • Length:
    118 mm
  • Size Flange:
    280 mm
  • Size Poly:
    250 mm
59439

Details

  • Length:
    117 mm
  • Size Flange:
    200 mm
  • Size Poly:
    200 mm
81153

Details

  • Length:
    101 mm
  • Size Flange:
    100 mm
  • Size Poly:
    110 mm
86827

Details

  • Length:
    101 mm
  • Size Flange:
    100 mm
  • Size Poly:
    125 mm
87031

Details

  • Length:
    100 mm
  • Size Flange:
    80 mm
  • Size Poly:
    90 mm
87033

Details

  • Length:
    109 mm
  • Size Flange:
    150 mm
  • Size Poly:
    160 mm
87034

Details

  • Length:
    112 mm
  • Size Flange:
    150 mm
  • Size Poly:
    180 mm
87035

Details

  • Length:
    118 mm
  • Size Flange:
    200 mm
  • Size Poly:
    225 mm
87036

Details

  • Length:
    118 mm
  • Size Flange:
    250 mm
  • Size Poly:
    250 mm
87037

Details

  • Length:
    119 mm
  • Size Flange:
    300 mm
  • Size Poly:
    315 mm
