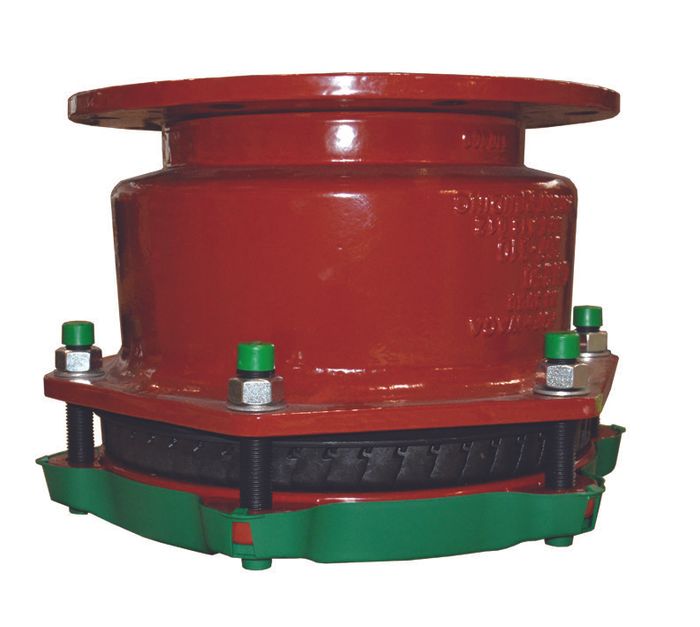

WAGA Multi Joint Coupling Adaptor Flanges

Description

• Ductile Cast Iron GGG45 body and clamping rings in accordance with EN-GJS-450-10


• Resicoat epoxy powder coating according to AS/NZ4158


• EPDM gasket in accordance with AS681.1 (0-50 degrees C


• Angular deflection of maximum 8 degrees per socket installation


• SS316 bolts, nuts and washers
• Hygiene cap included

Part Number Details
12688

Details

  • Size:
    100 mm
  • Size A:
    104-132 mm
13797

Details

  • Size:
    150 mm
  • Size A:
    154-192 mm
12419

Details

  • Size:
    200 mm
  • Size A:
    192-232 mm
13675

Details

  • Size:
    200 mm
  • Size A:
    230-268 mm
12917

Details

  • Size:
    250 mm
  • Size A:
    267-310 mm
13220

Details

  • Size:
    300 mm
  • Size A:
    315-356 mm
