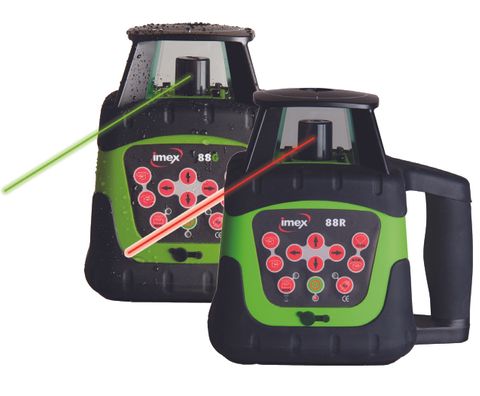

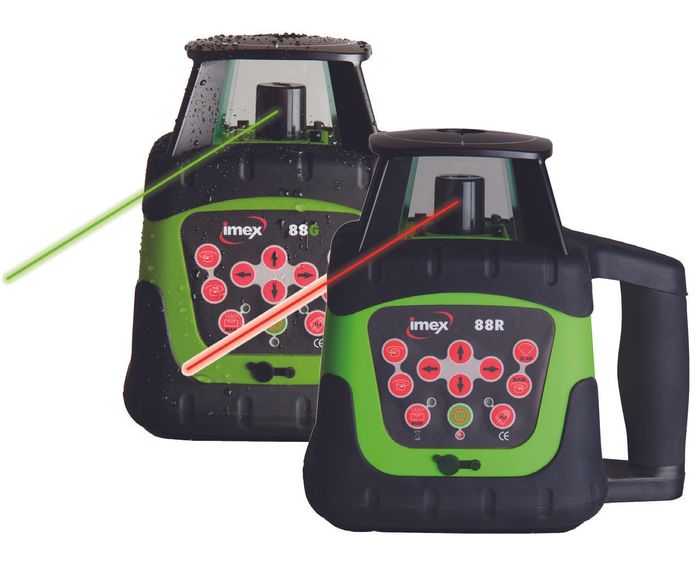

Imex 88 Series Laser Levels

Description

• Fully automatic, self levelling laser ideal for professional and constant use


• Heavy duty, highly visible, robust, shock, dust and weatherproof casing


• Remote control functionality with 20 m diameter working range


• Manual dual grade slope to 5° simultaneously


• Huge 500 m diameter working range with the standard detector


• Instrument works in horizontal and vertical planes


• Unique scan mode allows for part rotation, used when laser may interfere with other lasers


• Plumb spot, top and bottom assists in set ups over a point


• Optional green beam laser (uses less power, runs cooler, performs better, is safer and the human eye responds quicker to it than to red beam lasers) (Part no. 86228, 86233)


• 2 year Imex™ warranty







Specifications


• Self Levelling Range: ±5°


• Accuracy: 1.5 mm at 30 m


• Working Distance: Diameter 500 m with included detector


• Rotation Speed: 0, 60, 120, 300, 600 rpm


• Scan Mode: Yes, 0°, 10°, 45°, 90°, 180°


• Grade Slope: ±5° Dual grade (X or Y axis) 8.8%


• Plumb Spot: Yes, accuracy ±1 mm at 1.5 m


• Light Source: 88R: Red laser diode, 635 nm, Class II. 88G: Green laser diode 532 nm


• Remote Control: Yes, working range approximately 20 m, 2 x AAA


• Horizontal/Vertical: Yes


• Waterproof/Shatterproof: IP66


• Power: DC 4.8-6 V (Ni-Mh rechargeable)/alkaline option


• Working Time Between Charge: Approximately 20 hours, approximately 60 hours alkaline


• Low Battery Light: Yes


• Battery Charger: 240 V


• Working Temperature: 88R: -20°C to +50°C (-40°C to +70°C storage). 88G: 0-40°C


• Detector: Double sided operation fine and coarse setting; 9 V battery – 45 m range


• Unit Weight: 2.2 kg

Part Number Details
86228

Details

  • Brand:
    IMEX
  • Type:
    Green Beam
86233

Details

  • Brand:
    IMEX
  • Type:
    Green Beam Kit
